  • Underground Line

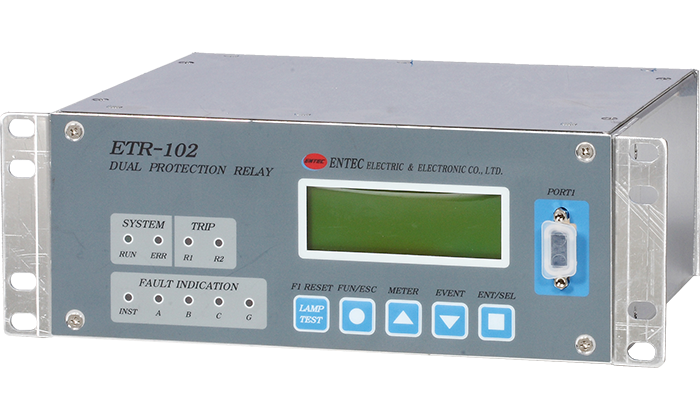

ETR-102

ETR-102

  • -
  • Multi-circuit relay for two CBs of Pad Mount Switchgear
  • -
  • Voltage, Current and Power metering and setting, data record monitoring

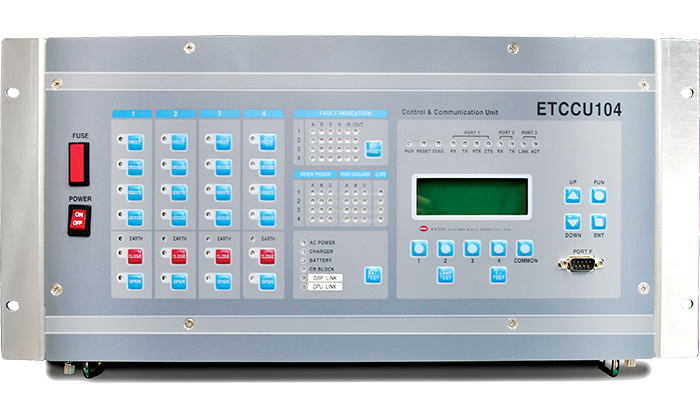

ETCCU104

ETCCU104

  • -
  • Multi-circuit relay for 4 way configuration of CB and SW for Pad Mount Switchgear
  • -
  • RTU(Remote Terminal Unit) embedded for local/remote monitoring and control
  • -
  • DNP 3.0, MODBUS, IEC60870-5-101/104 communication protocols with SCADA capability
  • -
  • Metering: Voltage, Current, Power in KW and KWH, Power Factor Demand watts and VARs and Frequency, Load Profile Data & Oscillogram
  • -
  • CB Protection: 51P, 51G, 51Q, 50P1, 50Q1, 50P2, 50G2, 50Q2, CLPU
  • -
  • LBS function: Fault Indicator (F.I), Section, Alarm current

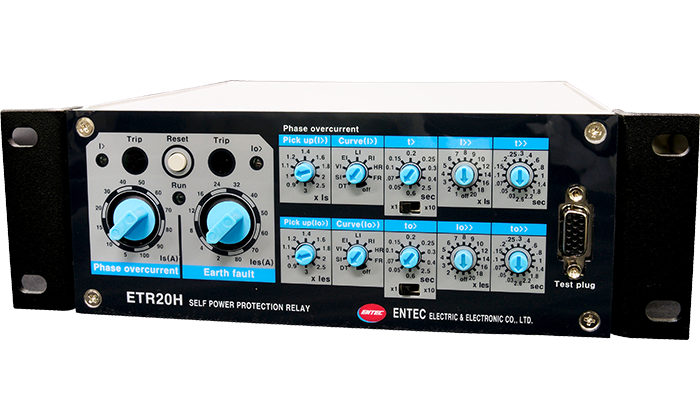

ETR20/H

ETR20/H

  • -
  • Microprocessor enabled digital protection relay, self-powered by the operating current
  • -
  • Microprocessor enabled digital protection relay, self-powered by the operating current
  • -
  • Installed in manually operated Ring Main Unit to perform additional trip function
  • -
  • Protection functions: 51, 50, 51N, 50N
  • -
  • Current Transformer(CT) Range: 1A Nominal
  • -
  • Pickup precision: ±10% or 2A
  • -
  • Trip Time precision: ±20% or 35m/sec

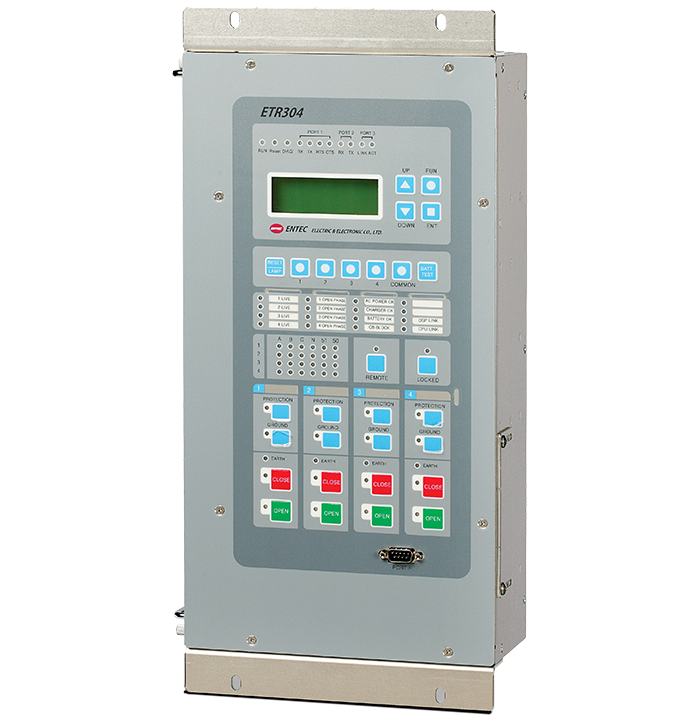

ETR304

ETR304

  • -
  • Microprocessor-based digital protection relay for 4 way configuration of switchgear
  • -
  • Local and remote operation available by built-in RTU
  • -
  • DNP 3.0, MODBUS, IEC60870-5-101/104 communication protocols with SCADA capability
  • -
  • Metering: Voltage, Current, Power in KW and KWH, Power Factor Demand watts and VARs and Frequency, Load Profile Data & Oscillogram
  • -
  • CB Protection: 51P, 51G, 51Q, 50P1, 50Q1, 50P2, 50G2, 50Q2, CLPU
  • -
  • LBS function: Fault Indicator (F.I), Section, Alarm current
  • -
  • User Reconfigurable Map: Point Remap, Point Classification, Status invert functions

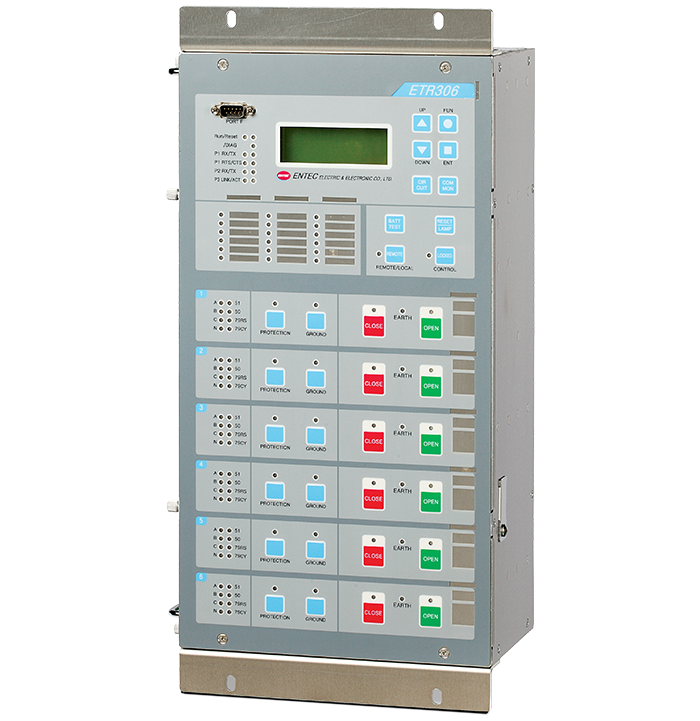

ETR306

ETR306

  • -
  • Microprocessor-based digital protection relay supporting 6 way configuration of switchgear(Vertical design)
  • -
  • Local and remote operation available by built-in RTU
  • -
  • DNP 3.0, MODBUS, IEC60870-5-101/104 communication protocols with SCADA capability
  • -
  • Metering: Voltage, Current, Power in KW and KWH, Power Factor Demand watts and VARs and Frequency, Load Profile Data & Oscillogram
  • -
  • CB Protection: 51P, 51G, 51Q, 50P1, 50Q1, 50P2, 50G2, 50Q2, CLPU
  • -
  • LBS function: Fault Indicator (F.I), Section, Alarm current
  • -
  • User Reconfigurable Map: Point Remap, Point Classification, Status invert function
