  • Metro

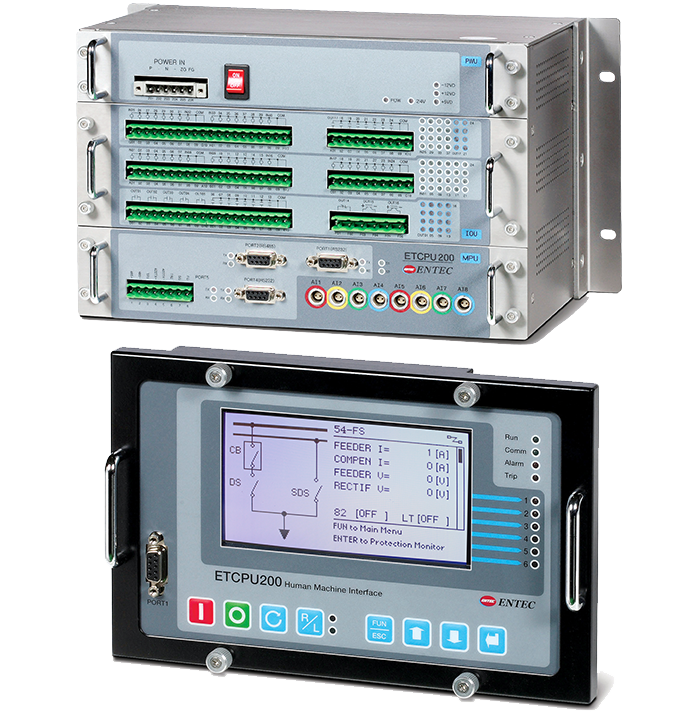

ETCPU 200 & HMI

ETCPU 200 & HMI

  • -
  • DC Switchgear Protection Relay
  • -
  • Protection, Control, Monitoring, Metering, Data Logging, PLC, Communication
  • -
  • di/dt, delta I, delta VI, 76D, 32, 80 45 Differential voltage, 26F, 64D, 64HR, 64P protection
  • -
  • Reclosing, Line Test Function
  • -
  • Multi Communication Protocol : DNP3.0, MODBUS, IEC 60870-5-101/104, IEC 61850
  • -
  • 24 DO , 40DI and 8 AI
  • -
  • 240 x 128 graphic LCD
  • -
  • Accompanying Interface software

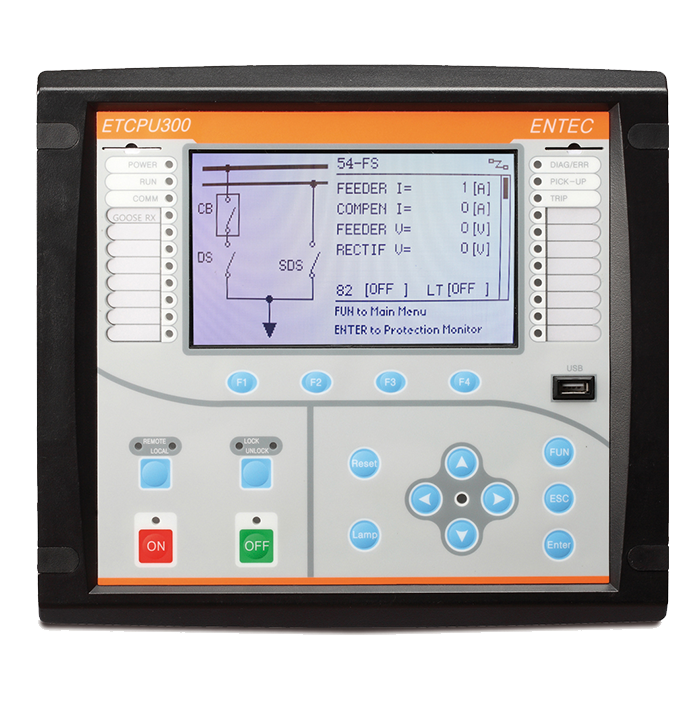

ETCPU 300

ETCPU 300

  • -
  • DC Switchgear Protection Relay (next generation)
  • -
  • Protection, Control, Monitoring, Metering, Data Logging, PLC, Communication
  • -
  • di/dt, delta I, delta VI, 76D, 32, 80 45 Differential voltage, 26F, 64D, 64HR, 64P protection
  • -
  • Reclosing, Line Test Function
  • -
  • Multi Communication Protocol : DNP3.0, MODBUS, IEC 60870-5-101/104, IEC 61850
  • -
  • 24 DO , 36DI and 16 AI
  • -
  • Elimination of HMI
  • -
  • Accompanying Interface software-
